An MC 12x10.6 steel channel serves as a ledger for the stair landing, secured to a seven-and-a-quarter-inch concrete tilt-up wall by half-inch diameter Simpson Titen HD anchors spaced at eighteen inches on center. A three-eighths-by-three-and-a-half-by-nine-inch connection plate is welded to the ledger with a quarter-inch fillet weld. Two three-quarter-inch diameter ASTM A325-N bolts fasten the structural member to the plate.

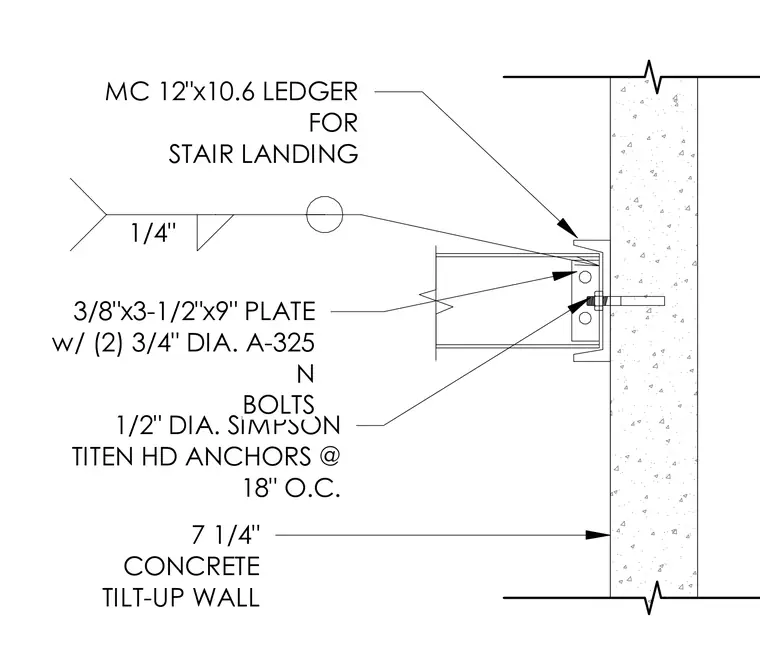

MC 12"x10.6 LEDGER FOR STAIR LANDING 1/2" DIA. SIMPSON TITEN HD ANCHORS @ 18" O.C. 7 1/4" CONCRETE TILT-UP WALL 3/8"x3-1/2"x9" PLATE w/ (2) 3/4" DIA. A-325 N BOLTS 1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
