Architectural · A-448GV

Millwork Countertop and Backsplash Section

Materials

Elements

Millwork / Casework Connections / Plates

About this detail

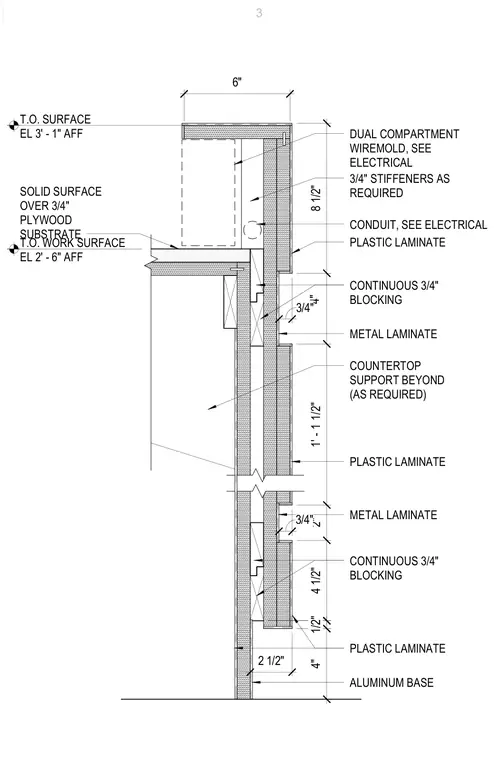

This millwork assembly features a solid surface countertop set over a three-quarter-inch plywood substrate, supported at a work surface elevation of two feet six inches above finished floor. A dual compartment wiremold and electrical conduit are integrated within the upper back panel, which is finished with plastic laminate and three-quarter-inch stiffeners as required. The vertical casework panels incorporate continuous three-quarter-inch wood blocking, alternating bands of plastic laminate and metal laminate finishes, and terminate with an aluminum base at the floor level. Countertop supports extend beyond as required to secure the worksurface, with the top of the upper surface situated at three feet one inch above finished floor.
