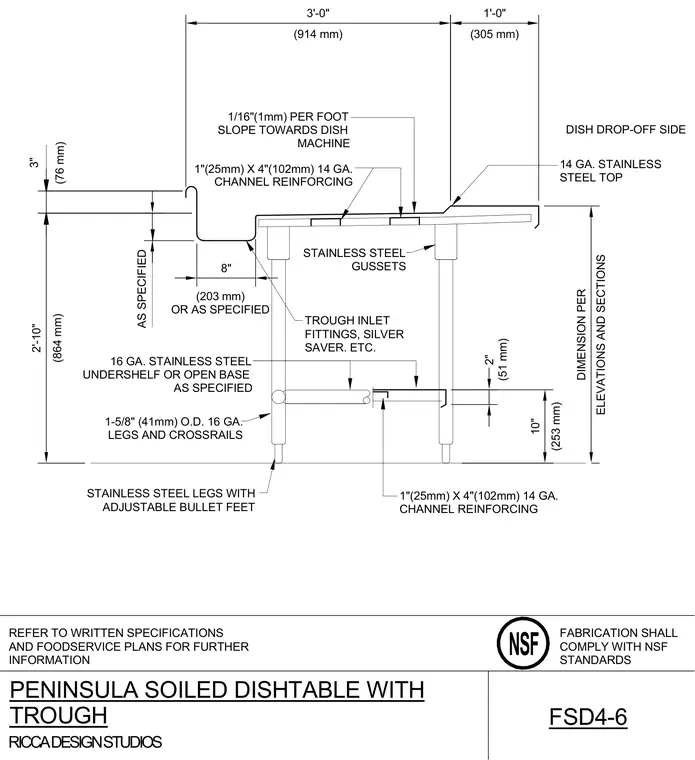

This assembly details a stainless steel peninsula soiled dishtable with an integrated trough sloping toward the dish machine at one sixteenth inch per foot. The fourteen gauge stainless steel top is reinforced with one by four inch fourteen gauge steel channels and supported by stainless steel gussets. The framework includes one and five eighths inch outer diameter sixteen gauge legs and crossrails fitted with adjustable bullet feet. An optional sixteen gauge stainless steel undershelf or open base is secured with additional one by four inch channel reinforcing. Fabrication must comply with NSF standards and match dimensions provided per elevations and sections.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 1/16"(1mm) PER FOOT SLOPE TOWARDS DISH MACHINE 14 GA. STAINLESS STEEL TOP STAINLESS STEEL GUSSETS TROUGH INLET FITTINGS, SILVER SAVER. ETC. 1-5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS 16 GA. STAINLESS STEEL UNDERSHELF OR OPEN BASE AS SPECIFIED 1"(25mm) X 4"(102mm) 14 GA. CHANNEL REINFORCING STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET DISH DROP-OFF SIDE 1"(25mm) X 4"(102mm) 14 GA. CHANNEL REINFORCING 1'-0" (305 mm) 10" (253 mm) 2" (51 mm) AS SPECIFIED DIMENSION PER ELEVATIONS AND SECTIONS 3'-0" (914 mm) 8" (203 mm) OR AS SPECIFIED 2'-10" (864 mm) PENINSULA SOILED DISHTABLE WITH TROUGH FSD4-6 3" (76 mm)
