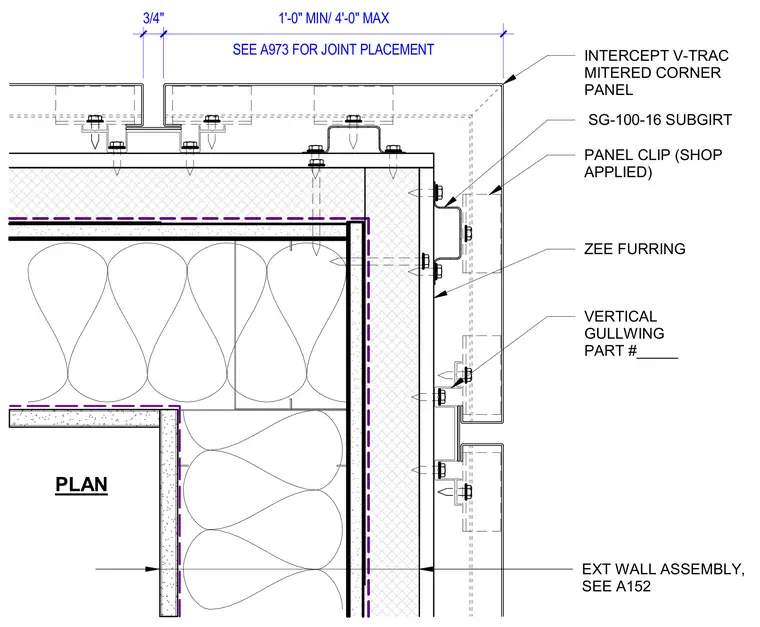

This plan detail shows an exterior metal wall panel assembly at an outer building corner. The mitered corner panel wraps the junction and is supported by shop-applied panel clips attached to SG-100-16 subgirts. The subgirts fasten to vertical zee furring secured across the exterior wall assembly. Vertical gullwing fasteners maintain panel alignment and joint spacing, with joint placement governed per sheet A973 and panel construction detailed on sheet A152.
PLAN EXT WALL ASSEMBLY, SEE A152 SEE A973 FOR JOINT PLACEMENT 1'-0" MIN/ 4'-0" MAX 3/4" ZEE FURRING INTERCEPT V-TRAC MITERED CORNER PANEL SG-100-16 SUBGIRT PANEL CLIP (SHOP APPLIED) VERTICAL GULLWING PART #_____
