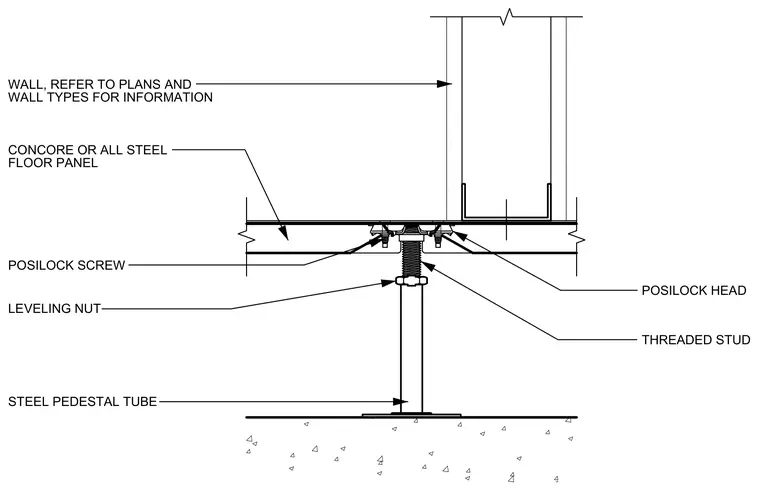

An interior partition wall is positioned directly over a raised access floor system. The floor panels, consisting of either Concore or all-steel panels, are supported by a posilock head attached to a threaded stud and steel pedestal tube. A leveling nut on the threaded stud allows height adjustment of the pedestal base resting on the structural subfloor. The partition wall rests on a floor track tied into the raised floor panel assembly.
THREADED STUD STEEL PEDESTAL TUBE LEVELING NUT POSILOCK SCREW CONCORE OR ALL STEEL WALL, REFER TO PLANS AND FLOOR PANEL WALL TYPES FOR INFORMATION POSILOCK HEAD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
