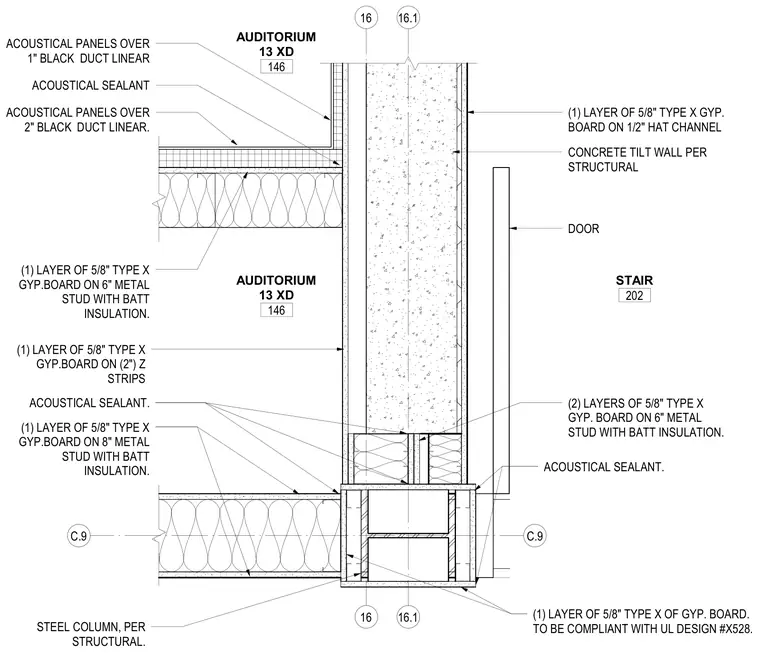

A structural concrete tilt wall and structural steel column receive interior furring and finish layers separating an auditorium and stairwell. One side features a layer of five-eighths inch Type X gypsum board over a half-inch hat channel, while adjacent areas utilize one or two layers of five-eighths inch Type X gypsum board over six-inch or eight-inch metal studs containing batt insulation. Two-inch Z strips support single gypsum board layers in specific zones, and acoustical sealant is applied at joints and perimeter junctions. Acoustical panels are installed over one-inch and two-inch black duct linear materials, and an adjacent door frame interfaces with the wall assembly.
16.1 16.1 16 16 C.9 C.9 (1) LAYER OF 5/8" TYPE X OF GYP. BOARD. TO BE COMPLIANT WITH UL DESIGN #X528. STEEL COLUMN, PER STRUCTURAL. (1) LAYER OF 5/8" TYPE X GYP.BOARD ON (2") Z STRIPS (1) LAYER OF 5/8" TYPE X GYP.BOARD ON 6" METAL STUD WITH BATT INSULATION. ACOUSTICAL PANELS OVER 1" BLACK DUCT LINEAR ACOUSTICAL PANELS OVER 2" BLACK DUCT LINEAR. ACOUSTICAL SEALANT (2) LAYERS OF 5/8" TYPE X GYP. BOARD ON 6" METAL STUD WITH BATT INSULATION. ACOUSTICAL SEALANT. CONCRETE TILT WALL PER STRUCTURAL (1) LAYER OF 5/8" TYPE X GYP. BOARD ON 1/2" HAT CHANNEL (1) LAYER OF 5/8" TYPE X GYP.BOARD ON 8" METAL STUD WITH BATT INSULATION. ACOUSTICAL SEALANT. DOOR AUDITORIUM 13 XD 146 STAIR 202 AUDITORIUM 13 XD 146
