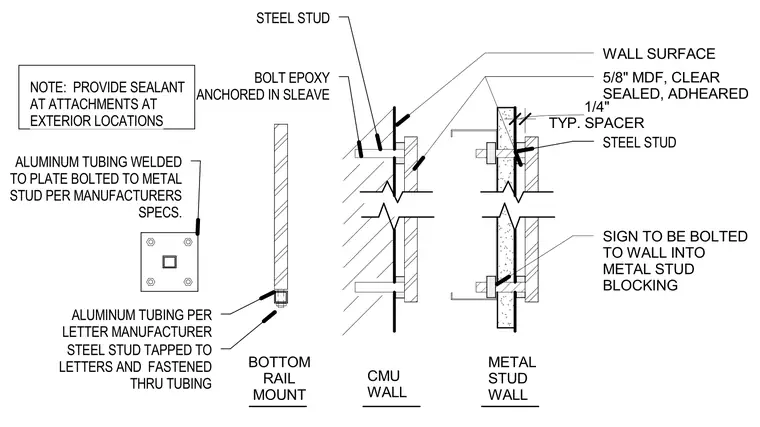

Mounting assembly for cast letters attached to exterior and interior wall surfaces. The wall surface consists of five-eighths-inch clear sealed medium-density fiberboard adhered with typical quarter-inch spacers. Fasteners anchor into metal stud blocking or utilize epoxy anchors in sleeves for concrete masonry unit walls. Aluminum tubing welded to a plate is bolted to the metal studs per the manufacturer's specifications. A bottom rail mount utilizes aluminum tubing welded to the letters and fastened through the tubing into the steel studs. Sealant is specified at attachments for all exterior locations.
WALL SURFACE SIGN TO BE BOLTED TO WALL INTO METAL STUD BLOCKING 5/8" MDF, CLEAR SEALED, ADHEARED BOLT EPOXY ANCHORED IN SLEAVE STEEL STUD CMU WALL ALUMINUM TUBING PER LETTER MANUFACTURER STEEL STUD TAPPED TO LETTERS AND FASTENED THRU TUBING BOTTOM RAIL MOUNT ALUMINUM TUBING WELDED TO PLATE BOLTED TO METAL STUD PER MANUFACTURERS SPECS. STEEL STUD METAL STUD WALL TYP. SPACER 1/4" NOTE: PROVIDE SEALANT AT ATTACHMENTS AT EXTERIOR LOCATIONS
