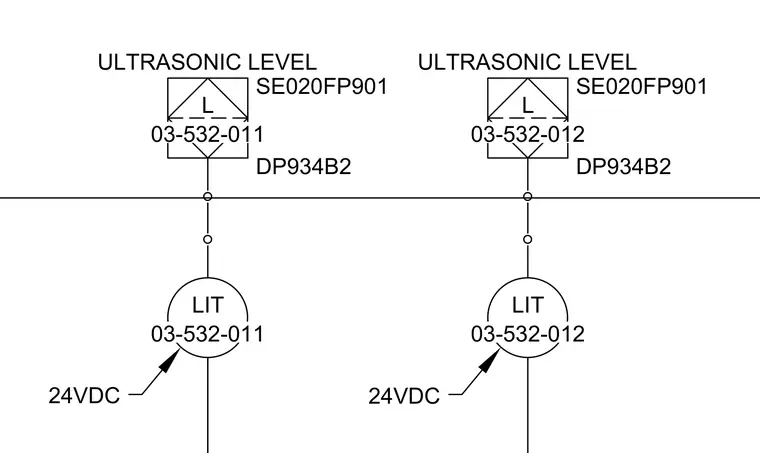

Two ultrasonic level transmitters designated as SE020FP901 and tag numbers 03-532-011 and 03-532-012 connect to level indicators powered by 24VDC. The instrument loop diagram details the wiring and tagging configuration for process monitoring.
L 03-532-011 ULTRASONIC LEVEL DP934B2 SE020FP901 LIT 03-532-011 LIT 03-532-012 L 03-532-012 ULTRASONIC LEVEL DP934B2 SE020FP901 24VDC 24VDC
