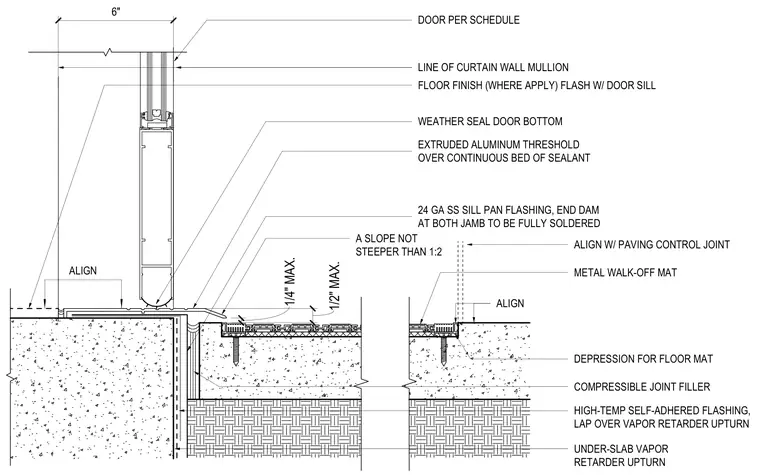

An extruded aluminum threshold rests on a continuous bed of sealant above a 24-gauge stainless steel sill pan flashing with fully soldered end dams at both jambs. The door assembly aligns with the curtain wall mullion and features a weather seal at the door bottom. A metal walk-off mat is set into a concrete floor depression with a compressible joint filler below. High-temperature self-adhered flashing laps over the under-slab vapor retarder upturn, coordinating with exterior paving control joints at a slope not steeper than one to two.
ALIGN ALIGN W/ PAVING CONTROL JOINT METAL WALK-OFF MAT DEPRESSION FOR FLOOR MAT EXTRUDED ALUMINUM THRESHOLD OVER CONTINUOUS BED OF SEALANT 6" FLOOR FINISH (WHERE APPLY) FLASH W/ DOOR SILL LINE OF CURTAIN WALL MULLION COMPRESSIBLE JOINT FILLER DOOR PER SCHEDULE 24 GA SS SILL PAN FLASHING, END DAM AT BOTH JAMB TO BE FULLY SOLDERED WEATHER SEAL DOOR BOTTOM 1/2" MAX. 1/4" MAX. A SLOPE NOT STEEPER THAN 1:2 HIGH-TEMP SELF-ADHERED FLASHING, LAP OVER VAPOR RETARDER UPTURN UNDER-SLAB VAPOR RETARDER UPTURN ALIGN
