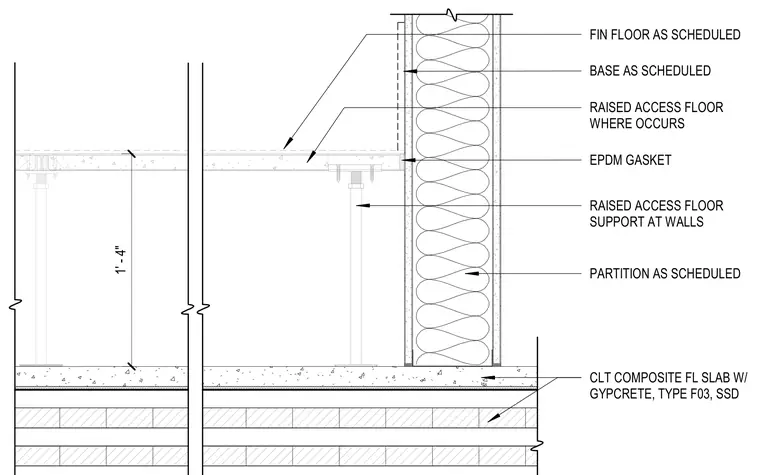

The assembly is constructed over a cross-laminated timber composite floor slab with a gypcrete topping, type F03. An interior partition as scheduled bears on the slab and extends upward through the floor space. A raised access floor system is supported by adjustable pedestals resting on the slab, maintaining a one-foot four-inch clearance. An EPDM gasket is placed between the raised access floor edge and the partition wall to isolate the systems. The raised floor assembly finishes with a specified finished floor material and base.
PARTITION AS SCHEDULED RAISED ACCESS FLOOR SUPPORT AT WALLS RAISED ACCESS FLOOR WHERE OCCURS FIN FLOOR AS SCHEDULED BASE AS SCHEDULED EPDM GASKET CLT COMPOSITE FL SLAB W/ GYPCRETE, TYPE F03, SSD 1' - 4" r e ^<> >— 4 - . n*—. 4 _ & 3
