Architectural · A-42KPA

Suspended Ceiling System Perimeter Support

Materials

Elements

Partitions Ceilings Floors / Slabs Insulation

About this detail

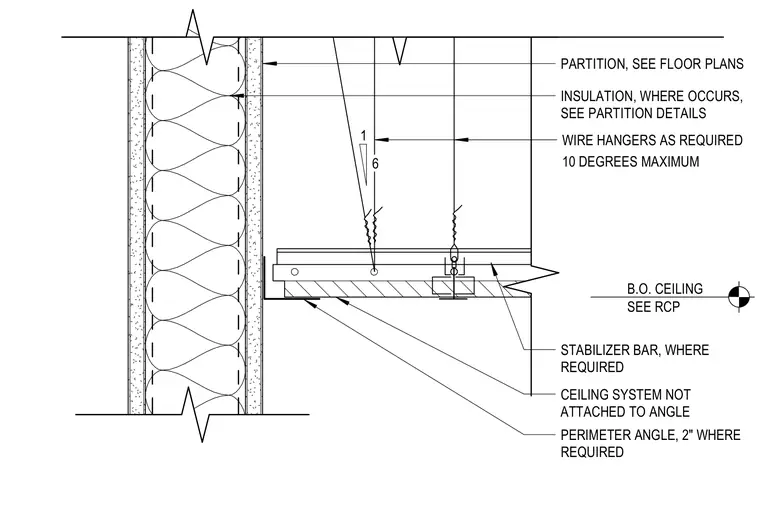

A suspended ceiling grid terminates at a partition wall with a perimeter angle, where the ceiling system remains unattached to the angle to allow for movement. Wire hangers support the ceiling grid at a maximum angle of ten degrees from vertical. Insulation fills the partition cavity as specified in partition details, and stabilizer bars are provided where required.
