Framing is installed per architectural specifications with a continuous double water-resistive barrier wrapping the outside corner. The primary water-resistive barrier continues at least six inches past the corner on both sides with no vertical seams within six inches of the corner. Furring and corner trim are attached outside the weather barrier. Siding is installed per elevation over the exterior furring.

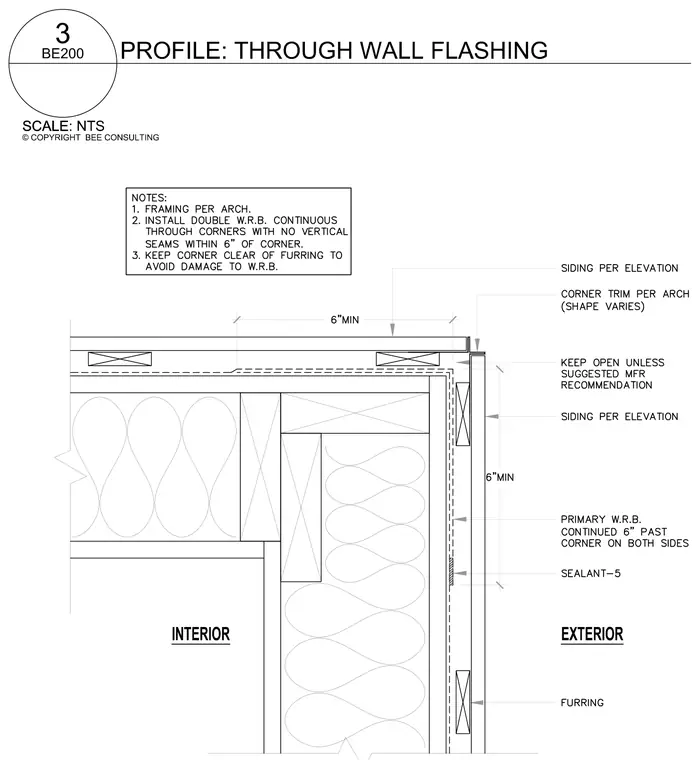

© COPYRIGHT BEE CONSULTING SCALE: NTS 3 SCALE BE200 EXTERIOR INTERIOR PROFILE: THROUGH WALL FLASHING
