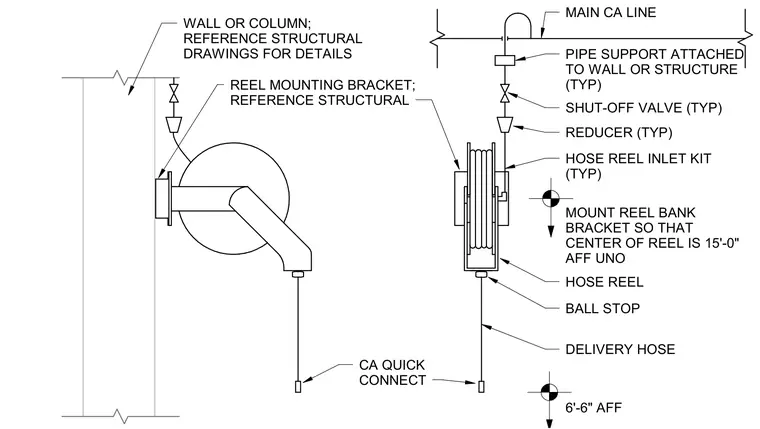

The compressed air hose reel bank mounts to a wall or structural column via a reel mounting bracket positioned so that the center of the reel sits at fifteen feet above finished floor. A main compressed air line feeds down through a typical pipe support attached to the structure, passing through a shut-off valve and a reducer into the hose reel inlet kit. The delivery hose extends downward from the reel to a ball stop and terminates at a compressed air quick connect fitting located at six feet six inches above finished floor.
MOUNT REEL BANK BRACKET SO THAT CENTER OF REEL IS 15'-0" AFF UNO BALL STOP DELIVERY HOSE REDUCER (TYP) SHUT-OFF VALVE (TYP) HOSE REEL INLET KIT (TYP) REEL MOUNTING BRACKET; REFERENCE STRUCTURAL MAIN CA LINE WALL OR COLUMN; REFERENCE STRUCTURAL DRAWINGS FOR DETAILS HOSE REEL PIPE SUPPORT ATTACHED TO WALL OR STRUCTURE (TYP) 6'-6" AFF CA QUICK CONNECT
