Architectural · A-425VY

USG Metal Furring Ceiling Suspension Assembly

Materials

Elements

About this detail

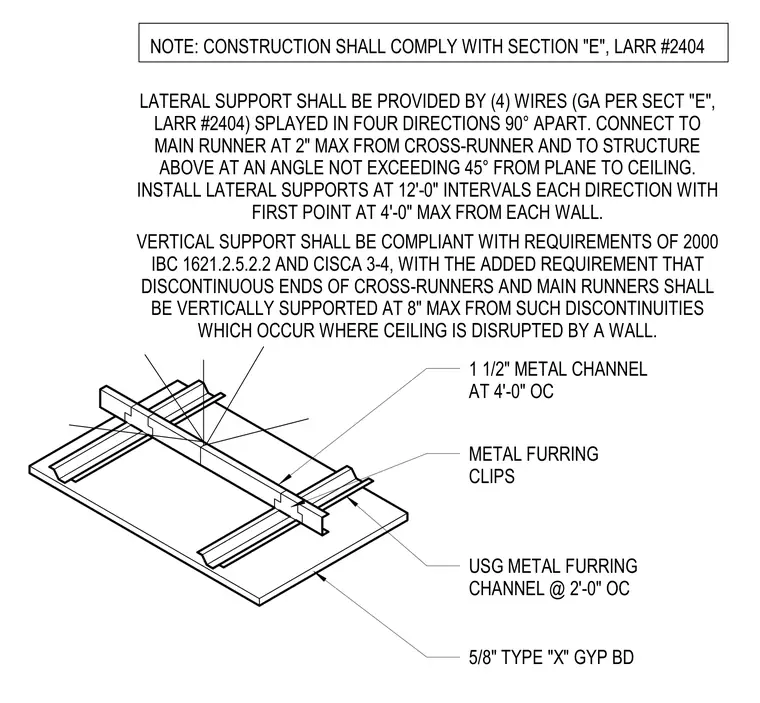

A suspended gypsum board ceiling assembly uses one and one-half inch metal channels spaced at four feet on center. Metal furring clips connect the metal channels to USG metal furring channels spaced at two feet on center, which support a five-eighths inch Type X gypsum board ceiling layer. Four splayed wires provide lateral support at twelve-foot intervals in each direction, anchored to the structure above at an angle not exceeding forty-five degrees. Vertical support complies with IBC and CISCA standards, requiring discontinuous ends of runners to be vertically supported within eight inches of wall disruptions.
