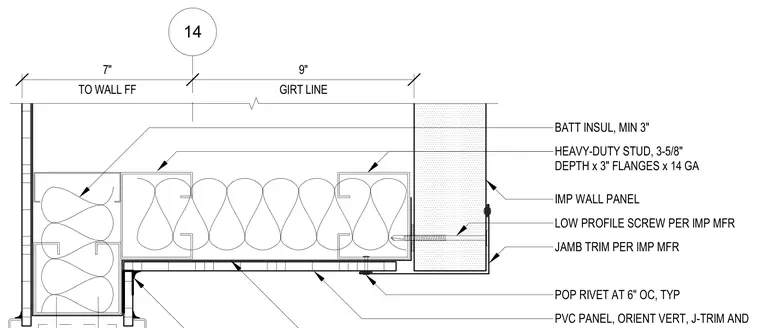

A door jamb assembly is constructed with heavy-duty metal framing studs measuring 3-5/8 inches deep with 3-inch flanges and 14 gauge thickness. The cavity is filled with a minimum 3-inch batt insulation, bounded by an insulated metal wall panel on the exterior side. The jamb trim is secured using low-profile screws per the manufacturer's specifications. A vertically oriented PVC panel is tied in with J-trim and secured using pop rivets spaced at 6 inches on center. Dimensions reference a 7-inch offset to the wall finished face and a 9-inch girt line.
LOW PROFILE SCREW PER IMP MFR JAMB TRIM PER IMP MFR HEAVY-DUTY STUD, 3-5/8" DEPTH x 3" FLANGES x 14 GA 14 TO WALL FF 7" GIRT LINE 9" PVC PANEL, ORIENT VERT, J-TRIM AND POP RIVET AT 6" OC, TYP BATT INSUL, MIN 3" IMP WALL PANEL
