Typical Base Cabinet with Sink

Elements

Doors Floors / Slabs Millwork / Casework

About this detail

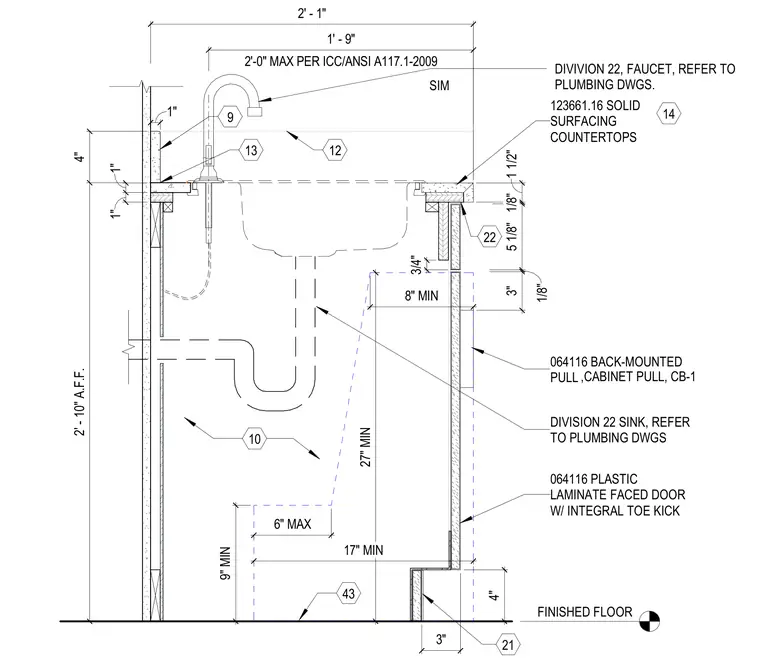

An accessible base cabinet assembly incorporates a solid surfacing countertop and plastic laminate faced doors with an integral toe kick. The sink and faucet are coordinated per the plumbing drawings, referencing Division 22. Clearances adhere to accessibility standards with a twenty-seven inch minimum knee clearance height and a two foot ten inch height to the top of the finished floor. Back-mounted cabinet pulls are specified for accessibility.
