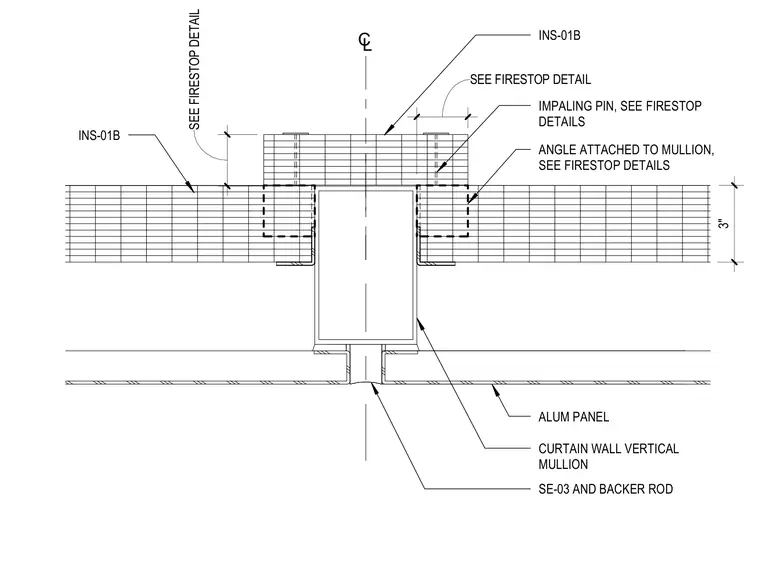

A curtain wall vertical mullion connects to aluminum panels with an angle attachment and impaling pins for firestop insulation. Firestop details and backer rods are coordinated per reference drawings. The insulation layer is installed with a thickness of 3 inches around the perimeter framing.
L C IMPALING PIN, SEE FIRESTOP DETAILS INS-01B CURTAIN WALL VERTICAL MULLION ANGLE ATTACHED TO MULLION, SEE FIRESTOP DETAILS SE-03 AND BACKER ROD SEE FIRESTOP DETAIL SEE FIRESTOP DETAIL INS-01B ALUM PANEL 3"
