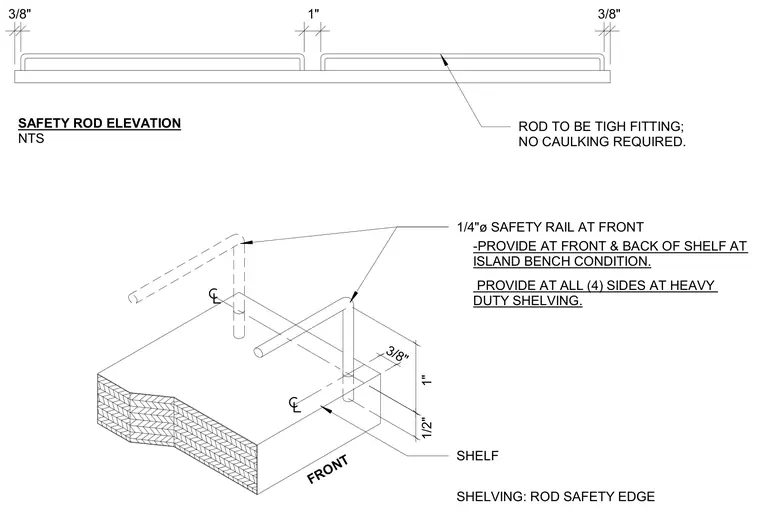

A quarter-inch diameter safety rail runs along the front and back of the shelf at island bench conditions and on all four sides of heavy-duty shelving. The rod requires a tight fit with no caulking. Dimension spacings include three-eighths of an inch, one inch, and one-half inch offsets from the shelf edges.
1/4"ø SAFETY RAIL AT FRONT SHELF FRONT 1/2" 3/8" SHELVING: ROD SAFETY EDGE -PROVIDE AT FRONT & BACK OF SHELF AT ISLAND BENCH CONDITION. 1" PROVIDE AT ALL (4) SIDES AT HEAVY DUTY SHELVING. SAFETY ROD ELEVATION NTS 3/8" 3/8" 1" ROD TO BE TIGH FITTING; NO CAULKING REQUIRED.
