Prefinished metal siding fastens to cold-formed steel Z-girts, which bear against the primary structural frame. A continuous galvanized metal flashing sits at the top of the concrete wainscot, positioned at six feet above finished floor.

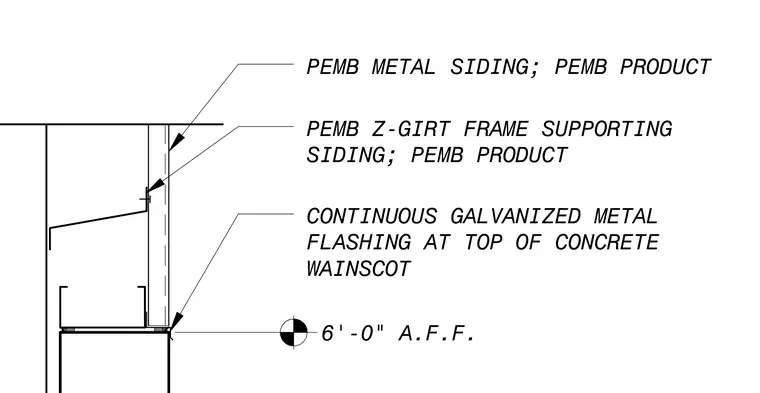

PEMB METAL SIDING; PEMB PRODUCT PEMB Z-GIRT FRAME SUPPORTING SIDING; PEMB PRODUCT CONTINUOUS GALVANIZED METAL FLASHING AT TOP OF CONCRETE WAINSCOT 6'-0" A.F.F. V J d
