Clinic Feature Wall with LED Accent Light and Wood Paneling

Materials

Elements

Walls Partitions Ceilings Millwork / Casework

About this detail

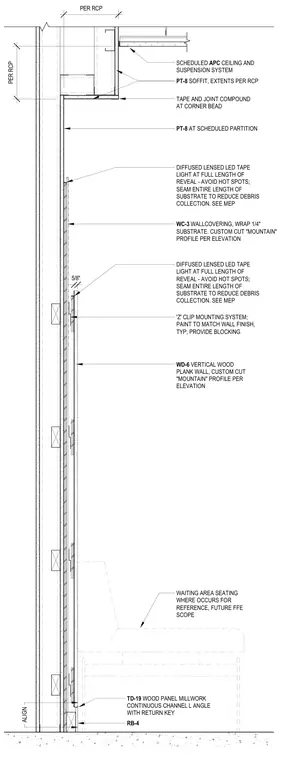

A feature wall assembly incorporates custom-cut mountain profile wood plank paneling designated as WD-6, mounted over a substrate with a five-eighths inch Z-clip mounting system and required backing blocking. The upper wall transitions to a WC-3 wallcovering wrapped over a one-quarter inch substrate, incorporating a continuous reveal housing a diffused lensed LED tape light coordinated with mechanical, electrical, and plumbing engineering. The top of the wall meets a scheduled acoustic plaster ceiling suspension system at a painted PT-8 soffit detail finished with tape and joint compound at the corner bead. At the base, a TD-19 wood panel millwork continuous channel L-angle with a return key aligns with a base RB-4 above the floor slab, adjacent to a waiting area seating reference.
