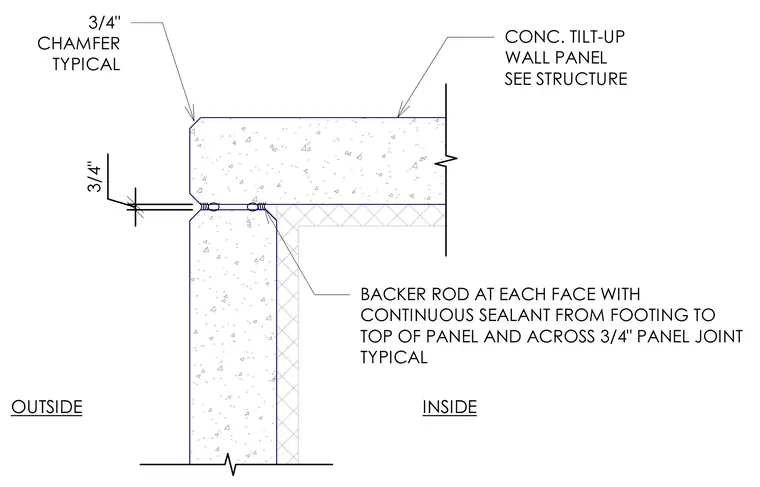

Concrete tilt-up wall panels feature a three-quarter-inch chamfer at all outside and inside corners typical. Adjoining panels maintain a three-quarter-inch vertical joint gap between them. A backer rod is installed at each face of the panel joint, backed by continuous sealant running from the footing to the top of the panel and across the joint.
CONC. TILT-UP WALL PANEL SEE STRUCTURE BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL 3/4" 3/4" CHAMFER TYPICAL INSIDE OUTSIDE
