The subwoofer attaches to a pair of Unistrut P5000T spans using four M10 bolts, while the Unistrut assembly secures to overhead structural framing using eight 1/2-inch bolts and Unistrut beam clamps. Below, the loudspeaker hangs from a manufacturer-provided mounting yoke, which fastens to a Unistrut P1000 span using 1/2-inch bolts and P1010 spring nuts. The P1000 span is suspended from the structure above using two additional 1/2-inch bolts and P1010 spring nuts.

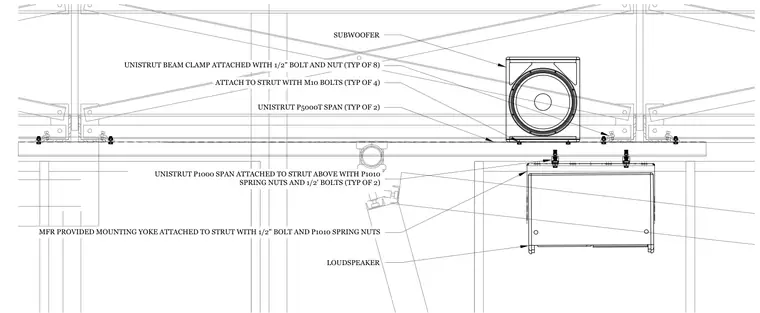

SUBWOOFER ATTACH TO STRUT WITH M10 BOLTS (TYP OF 4) UNISTRUT BEAM CLAMP ATTACHED WITH 1/2" BOLT AND NUT (TYP OF 8) UNISTRUT P5000T SPAN (TYP OF 2) UNISTRUT P1000 SPAN ATTACHED TO STRUT ABOVE WITH P1010 SPRING NUTS AND 1/2' BOLTS (TYP OF 2) MFR PROVIDED MOUNTING YOKE ATTACHED TO STRUT WITH 1/2" BOLT AND P1010 SPRING NUTS LOUDSPEAKER
