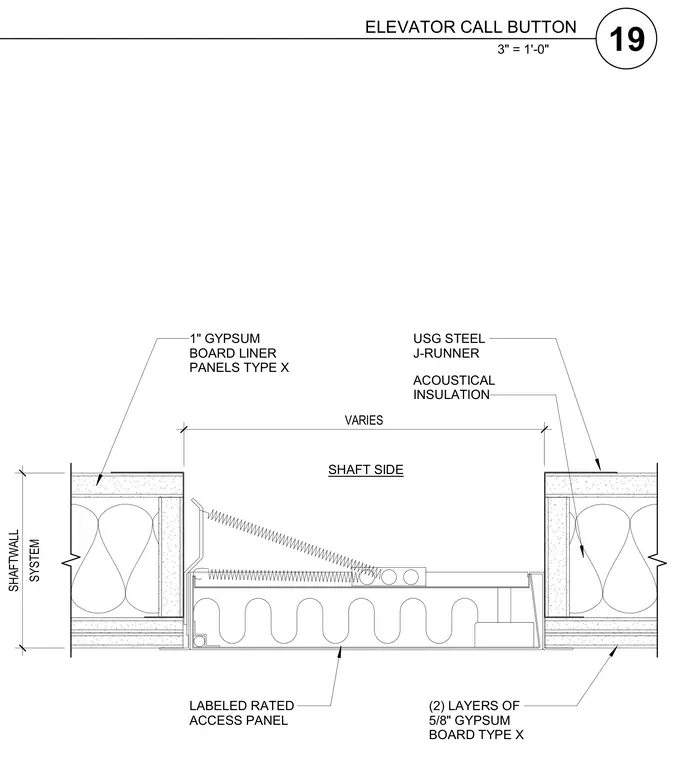

The jamb assembly consists of USG steel J-runners framing an opening within a shaftwall system. The surrounding wall is finished with two layers of 5/8-inch Type X gypsum board on the exterior and 1-inch Type X gypsum board liner panels on the shaft side. Acoustical insulation fills the stud cavity. A labeled, fire-rated access panel is integrated into the opening to provide maintenance entry.
USG STEEL J-RUNNER ACOUSTICAL INSULATION (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X 1" GYPSUM BOARD LINER PANELS TYPE X SYSTEM SHAFTWALL LABELED RATED ACCESS PANEL SHAFT SIDE VARIES 3" = 1'-0" 19 ELEVATOR CALL BUTTON
