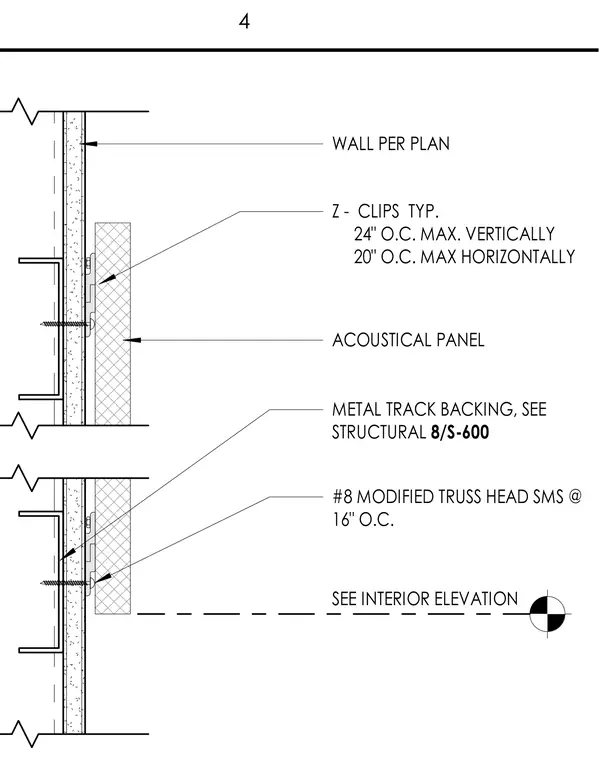

An acoustical panel is attached to a metal stud wall assembly using Z-clips spaced at a maximum of 24 inches on center vertically and 20 inches on center horizontally. The Z-clips and wall framing connect to metal track backing sized per structural drawings. Number 8 modified truss head sheet metal screws secure the assembly at 16 inches on center.
METAL TRACK BACKING, SEE STRUCTURAL 8/S-600 ACOUSTICAL PANEL #8 MODIFIED TRUSS HEAD SMS @ 16" O.C. SEE INTERIOR ELEVATION WALL PER PLAN Z - CLIPS TYP. 24" O.C. MAX. VERTICALLY 20" O.C. MAX HORIZONTALLY 4
