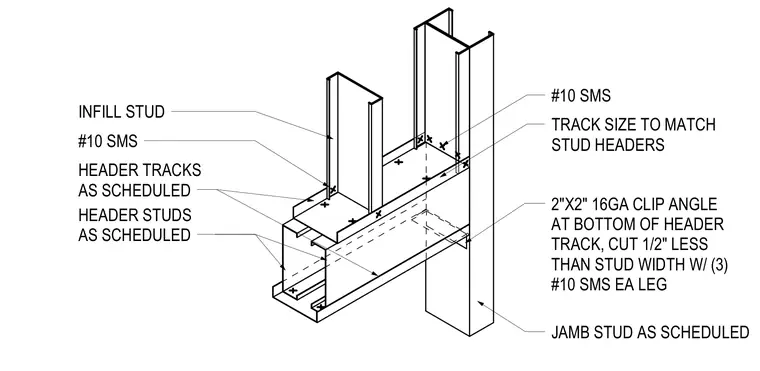

Cold-formed steel framing at wall openings utilizes header studs and header tracks as scheduled, supported by jamb studs as scheduled. A two-inch by two-inch sixteen-gauge clip angle is placed at the bottom of the header track, cut one-half inch less than the stud width and secured with three number ten self-tapping sheet metal screws on each leg. An infill stud connects into a track sized to match the stud headers using number ten self-tapping screws.
JAMB STUD AS SCHEDULED HEADER STUDS AS SCHEDULED HEADER TRACKS AS SCHEDULED INFILL STUD #10 SMS #10 SMS TRACK SIZE TO MATCH STUD HEADERS 2"X2" 16GA CLIP ANGLE AT BOTTOM OF HEADER TRACK, CUT 1/2" LESS THAN STUD WIDTH W/ (3) #10 SMS EA LEG
