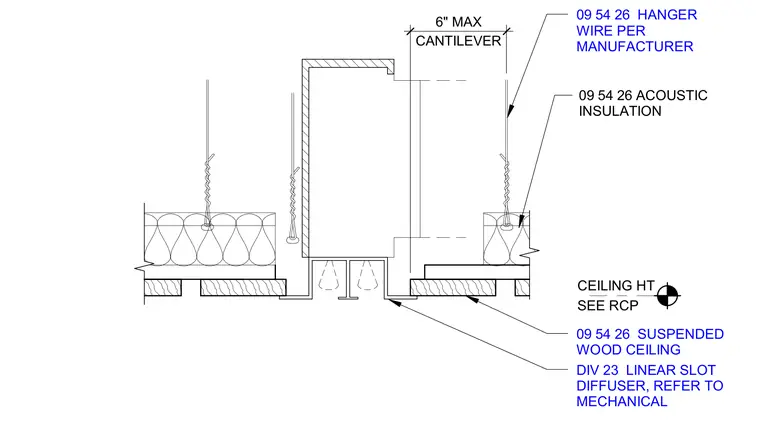

Suspended wood ceiling panels terminate at a linear slot diffuser, with the diffuser coordinated through mechanical division twenty-three and referencing the reflected ceiling plan for height. Hanger wires per manufacturer support the framing with a maximum cantilever of six inches. Acoustic insulation is installed above the ceiling panels adjacent to the diffuser transition.
CEILING HT SEE RCP 09 54 26 HANGER WIRE PER MANUFACTURER 09 54 26 ACOUSTIC INSULATION 09 54 26 SUSPENDED WOOD CEILING DIV 23 LINEAR SLOT DIFFUSER, REFER TO MECHANICAL CANTILEVER 6" MAX
