Directional Sign Assembly

About this detail

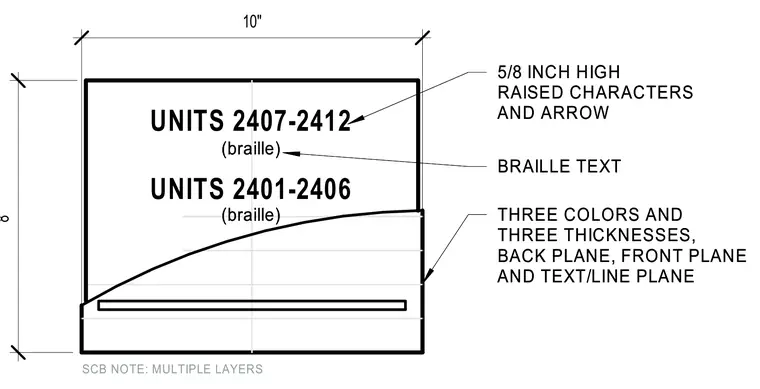

The multi-layered directional sign assembly measures eight inches high by ten inches wide. It features three distinct layers including a back plane, front plane, and a text/line plane with three different thicknesses and colors. The sign incorporates five-eighths-inch high raised characters, directional arrows, and integrated braille text to accommodate visually impaired occupants.
