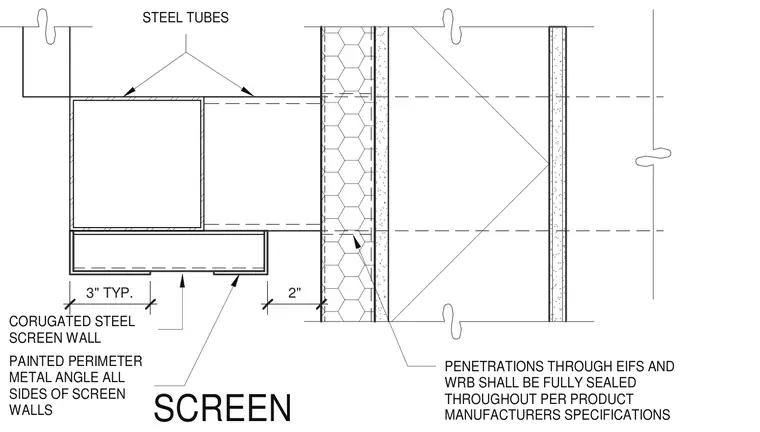

Steel tubes penetrate an exterior insulation and finish system wall assembly with a corrugated steel screen wall mounted on painted perimeter metal angles on all sides. All penetrations through the exterior insulation and finish system and water-resistive barrier are fully sealed throughout per the product manufacturer specifications.
2" 3" TYP. STEEL TUBES CORUGATED STEEL SCREEN WALL PAINTED PERIMETER METAL ANGLE ALL SIDES OF SCREEN WALLS PENETRATIONS THROUGH EIFS AND WRB SHALL BE FULLY SEALED THROUGHOUT PER PRODUCT MANUFACTURERS SPECIFICATIONS SCREEN
