The assembly is housed within a minimum twelve-inch by twelve-inch by four-inch NEMA 4X enclosure. A Siemens Profibus DP terminating resistor connects alongside a Turck Profibus DP bus tee using field wireable connectors. A twenty-four volt direct current power supply provides system power, and a Phoenix computer interface programming port is mounted externally.

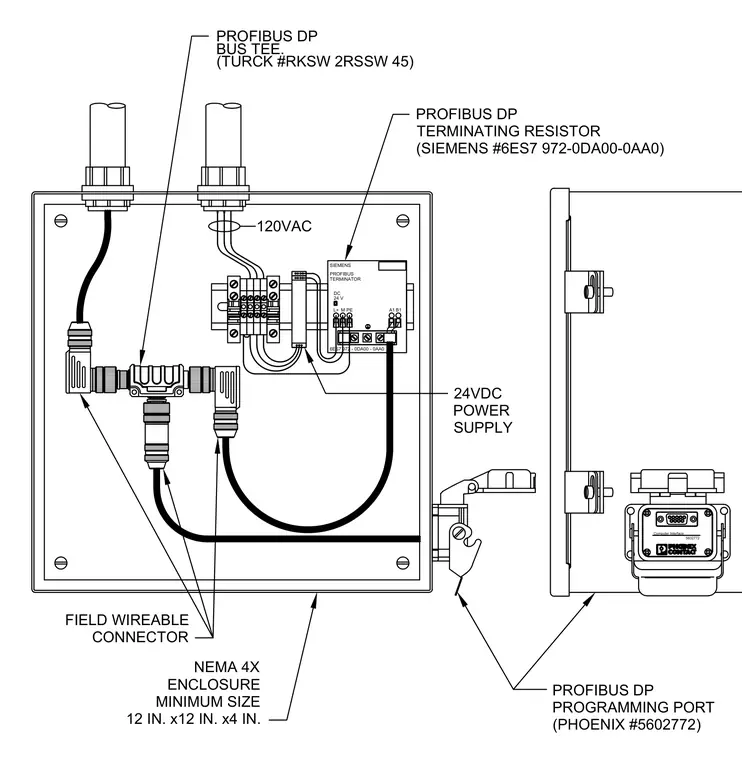

120VAC PROFIBUS DP TERMINATING RESISTOR (SIEMENS #6ES7 972-0DA00-0AA0) PROFIBUS DP BUS TEE. (TURCK #RKSW 2RSSW 45) 5602772 Computer Interface SIEMENS PROFIBUS TERMINATOR L+ M PE 6ES7 972 - 0DA00 - 0AA0 DC 24 V B1 A1 FIELD WIREABLE CONNECTOR 24VDC POWER SUPPLY PROFIBUS DP PROGRAMMING PORT (PHOENIX #5602772) NEMA 4X ENCLOSURE MINIMUM SIZE 12 IN. x12 IN. x4 IN.
