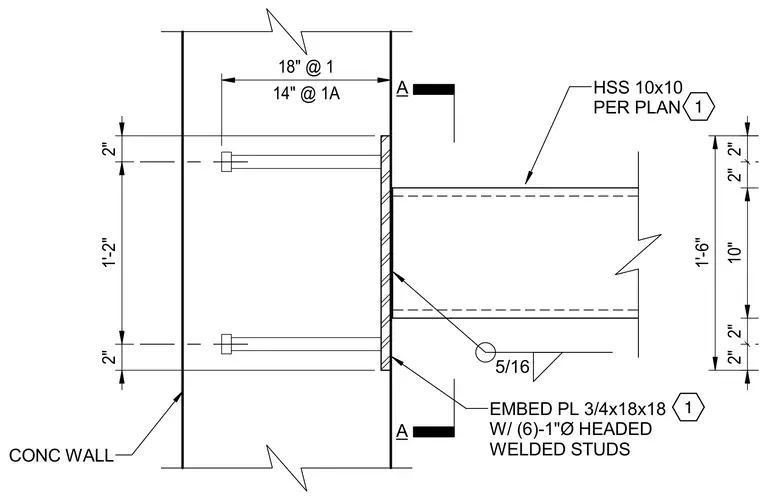

An HSS 10x10 structural steel column connects to a concrete wall using a 3/4-inch by 18-inch by 18-inch embed plate. The embed plate is anchored into the concrete wall with six 1-inch diameter headed welded studs. The HSS column is welded to the face of the embed plate with a 5/16-inch fillet weld.
HSS 10x10 PER PLAN 1 5/16 EMBED PL 3/4x18x18 W/ (6)-1"Ø HEADED WELDED STUDS 1 A A CONC WALL 2" 2" 10" 2" 2" 1'-6" 2" 1'-2" 2" 14" @ 1A 18" @ 1
