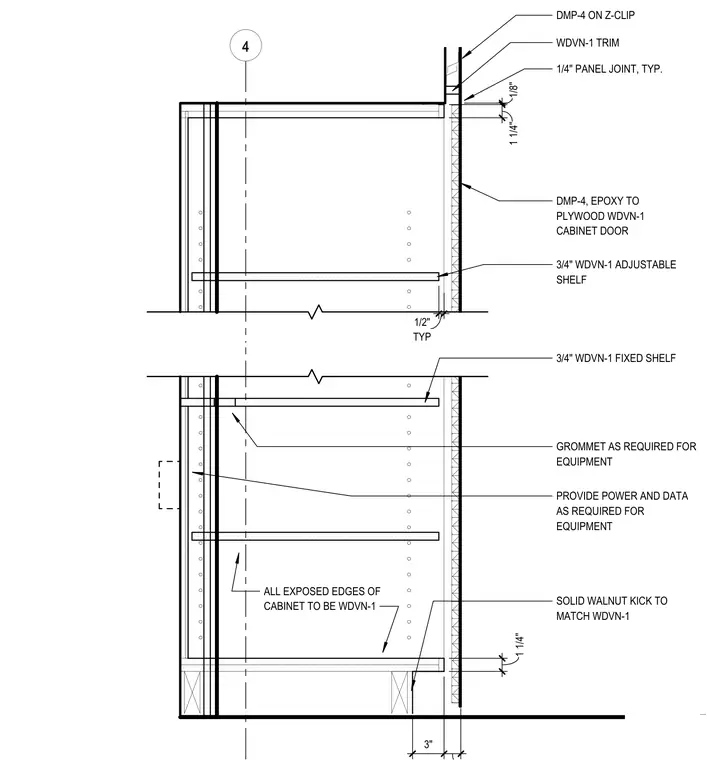

A reception back cabinet assembly features three-quarter-inch wood veneer doors and shelves. The cabinet incorporates three-quarter-inch adjustable and fixed shelves, with all exposed edges finished in matching wood veneer. A decorative panel system with three-quarter-inch DMP-4 panels is mounted on Z-clips with typical one-quarter-inch panel joints over a plywood substrate. A solid walnut kick matches the veneer at the base. Provisions for equipment include electrical grommets and necessary power and data rough-ins.
4 1 1 / 4 " 3 " 1 / 8 " 1 1 / 4 " 1/4" PANEL JOINT, TYP. DMP-4 ON Z-CLIP DMP-4, EPOXY TO PLYWOOD WDVN-1 CABINET DOOR 3/4" WDVN-1 ADJUSTABLE SHELF T Y P 1 / 2 " ALL EXPOSED EDGES OF CABINET TO BE WDVN-1 WDVN-1 TRIM 3/4" WDVN-1 FIXED SHELF PROVIDE POWER AND DATA AS REQUIRED FOR EQUIPMENT GROMMET AS REQUIRED FOR EQUIPMENT SOLID WALNUT KICK TO MATCH WDVN-1
