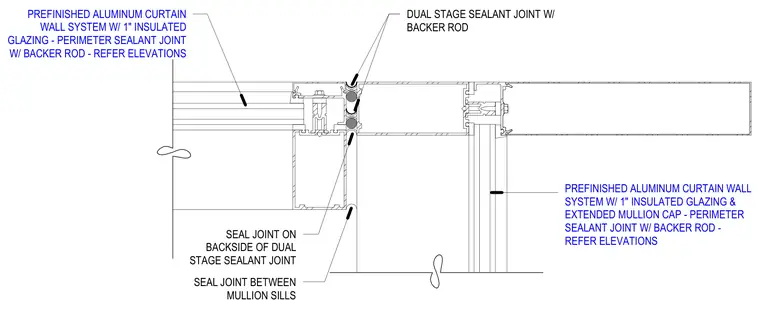

A prefinished aluminum curtain wall system with one-inch insulated glazing meets at the jamb condition. Dual-stage sealant joints with backer rods provide weatherproofing between the frame components. Additional seals are located on the backside of the dual-stage joint and between the mullion sills.
PREFINISHED ALUMINUM CURTAIN WALL SYSTEM W/ 1" INSULATED GLAZING & EXTENDED MULLION CAP - PERIMETER SEALANT JOINT W/ BACKER ROD - REFER ELEVATIONS PREFINISHED ALUMINUM CURTAIN WALL SYSTEM W/ 1" INSULATED GLAZING - PERIMETER SEALANT JOINT W/ BACKER ROD - REFER ELEVATIONS SEAL JOINT BETWEEN MULLION SILLS DUAL STAGE SEALANT JOINT W/ BACKER ROD SEAL JOINT ON BACKSIDE OF DUAL STAGE SEALANT JOINT
