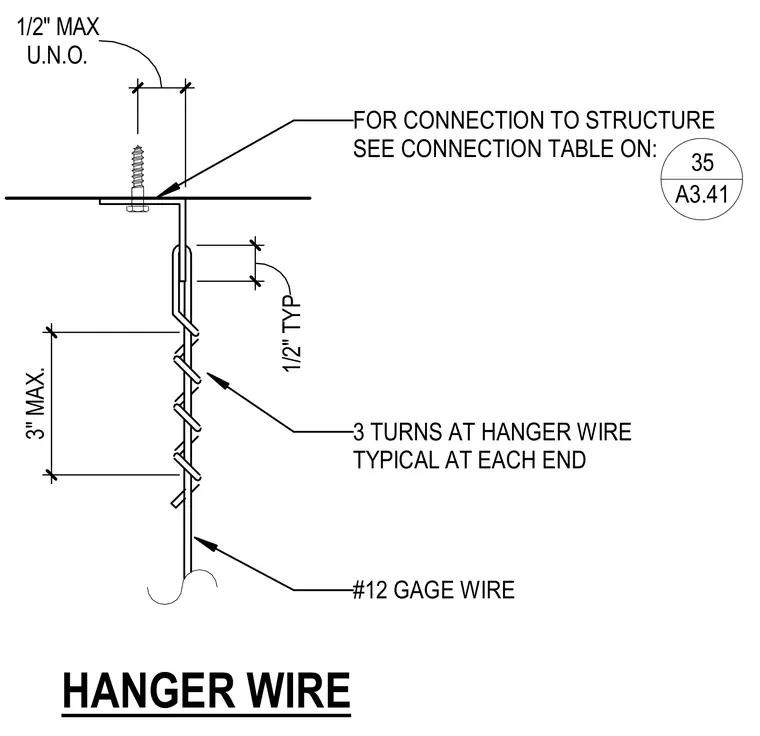

The assembly consists of a number twelve gauge wire secured to the overhead structure with an approved fastener per the structural connection table. The lower portion forms a loop tied off with a minimum of three turns at each end, maintaining a maximum spacing of three inches and a typical one-half inch clearance.
FOR CONNECTION TO STRUCTURE SEE CONNECTION TABLE ON: U.N.O. 1/2" MAX 3 TURNS AT HANGER WIRE TYPICAL AT EACH END #12 GAGE WIRE 1/2" TYP HANGER WIRE 3" MAX. 35 A3.41
