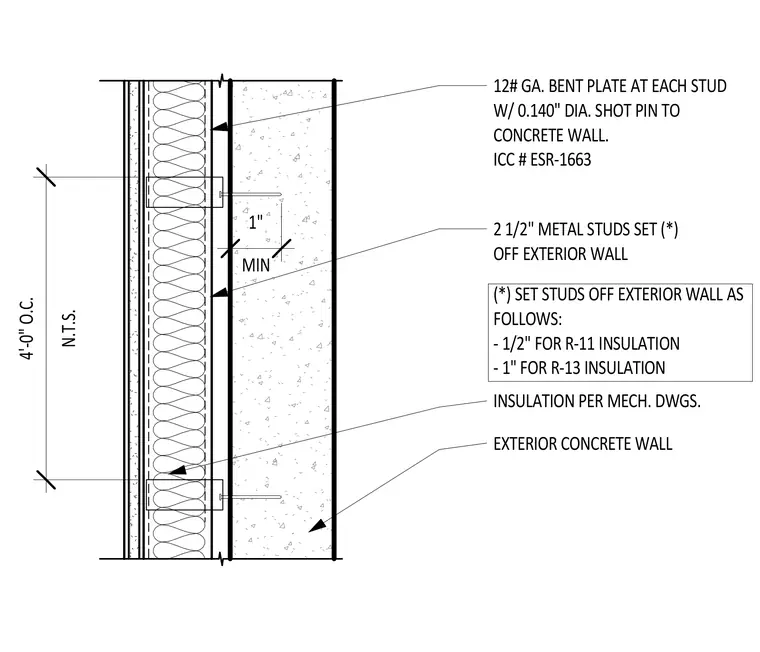

Two-and-a-half-inch cold-formed metal studs are spaced four feet on center and offset from an exterior concrete wall using twelve-gauge bent plates. The bent plates are secured to the concrete wall with zero-point-one-four-zero-inch diameter shot pins. The stud offset varies based on insulation thickness, requiring a one-half-inch offset for R-eleven insulation and a one-inch minimum offset for R-thirteen insulation. Insulation thickness and placement are coordinated with mechanical drawings.
EXTERIOR CONCRETE WALL INSULATION PER MECH. DWGS. 2 1/2" METAL STUDS SET (*) OFF EXTERIOR WALL (*) SET STUDS OFF EXTERIOR WALL AS FOLLOWS: - 1/2" FOR R-11 INSULATION - 1" FOR R-13 INSULATION 12# GA. BENT PLATE AT EACH STUD W/ 0.140" DIA. SHOT PIN TO CONCRETE WALL. ICC # ESR-1663 N.T.S. 4'-0" O.C. MIN 1"
