Architectural · A-3WKMX

Floor Slab Transitions and Drainage Details

Materials

Steel

Elements

Floors / Slabs Arches Drainage Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

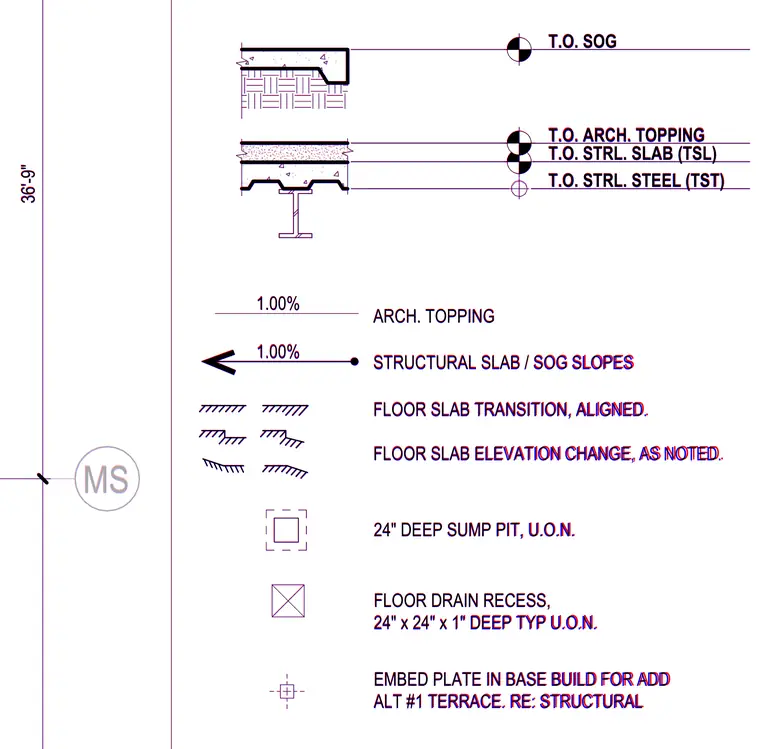

This drawing outlines floor slab conditions including top of slab elevations for structural slabs, architectural toppings, and structural steel. Slab slopes are indicated at one percent alongside transition details and elevation changes. Specific architectural provisions include twenty-four inch deep sump pits and typical twenty-four by twenty-four by one-inch deep floor drain recesses. Embed plates are designated for the base build to accommodate alternate terrace construction per structural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
