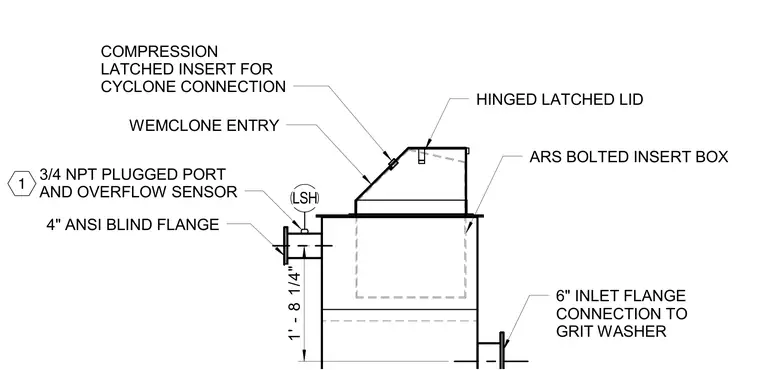

The assembly features a hinged latched lid positioned atop a compression latched insert for the cyclone connection, leading into the Wemclone entry. An ARS bolted insert box connects to the upper section of the housing. A 3/4-inch National Pipe Thread plugged port with an overflow sensor and level switch is installed alongside a 4-inch American National Standards Institute blind flange. A 6-inch inlet flange connection ties into the grit washer at the lower side of the unit.
HINGED LATCHED LID COMPRESSION LATCHED INSERT FOR CYCLONE CONNECTION WEMCLONE ENTRY 3/4 NPT PLUGGED PORT AND OVERFLOW SENSOR 4" ANSI BLIND FLANGE ARS BOLTED INSERT BOX 6" INLET FLANGE CONNECTION TO GRIT WASHER 1 1' - 8 1/4" LSH
