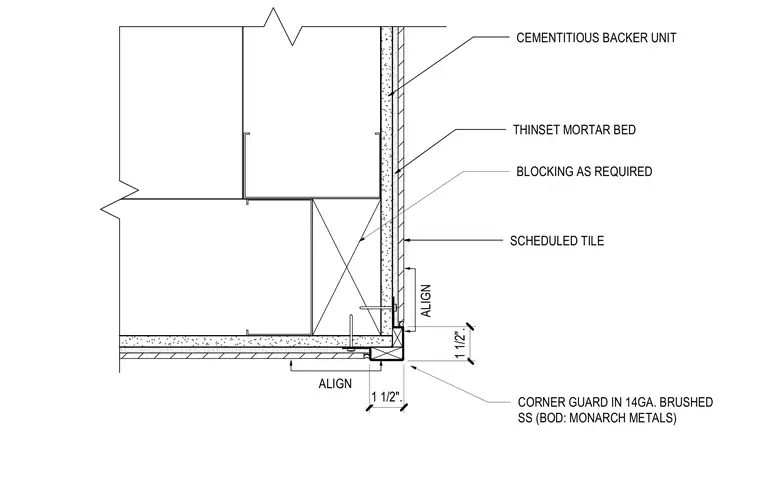

A fourteen gauge brushed stainless steel corner guard is installed at a tiled exterior corner with one and one-half inch leg dimensions. The corner guard aligns with scheduled tile applied over a thinset mortar bed. A cementitious backer unit provides the substrate, supported by wood blocking as required behind the assembly.
ALIGN ALIGN CORNER GUARD IN 14GA. BRUSHED SS (BOD: MONARCH METALS) 1 1/2". 1 1/2". THINSET MORTAR BED CEMENTITIOUS BACKER UNIT SCHEDULED TILE BLOCKING AS REQUIRED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
