A-3WHHF — South Corner of Executive Terrace

Architectural · A-3WHHF

South Corner of Executive Terrace

Units: metric
Sheet: A7.42
Discipline: Architectural

Elements

Balconies Columns Floors / Slabs Railings / Guards Roofs Site / Paving

Text on the drawing

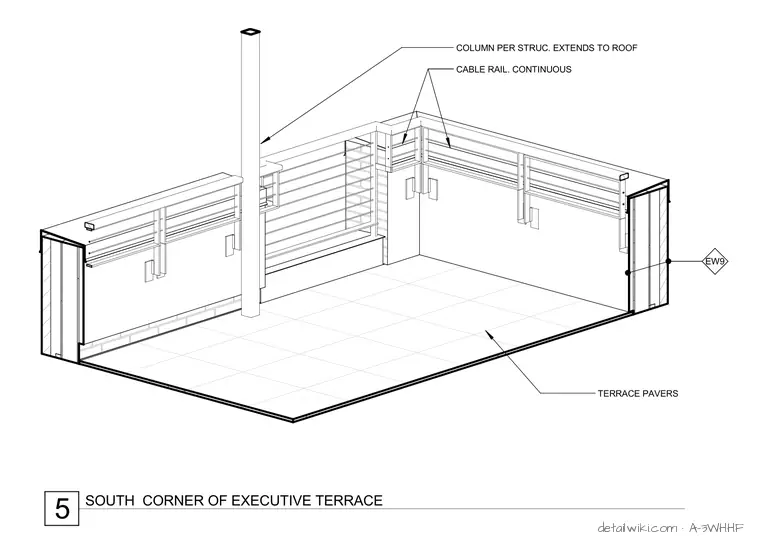

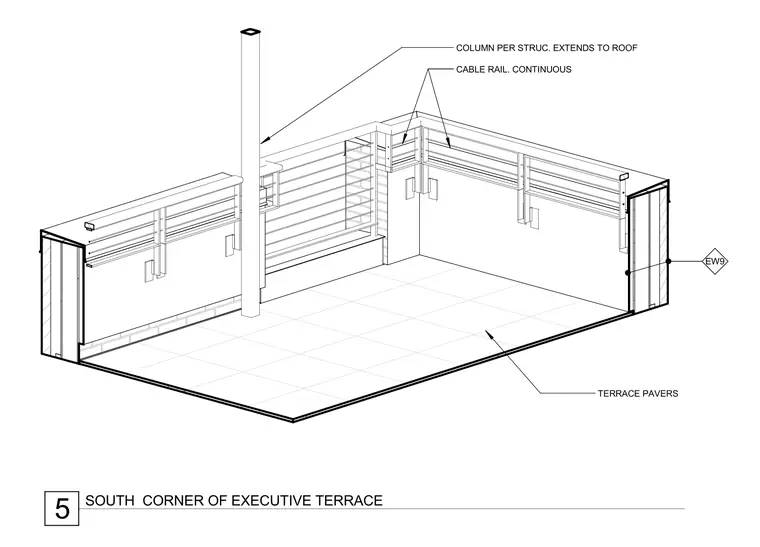

COLUMN PER STRUC. EXTENDS TO ROOF CABLE RAIL. CONTINUOUS TERRACE PAVERS EW9 EW9 5 SOUTH CORNER OF EXECUTIVE TERRACE
