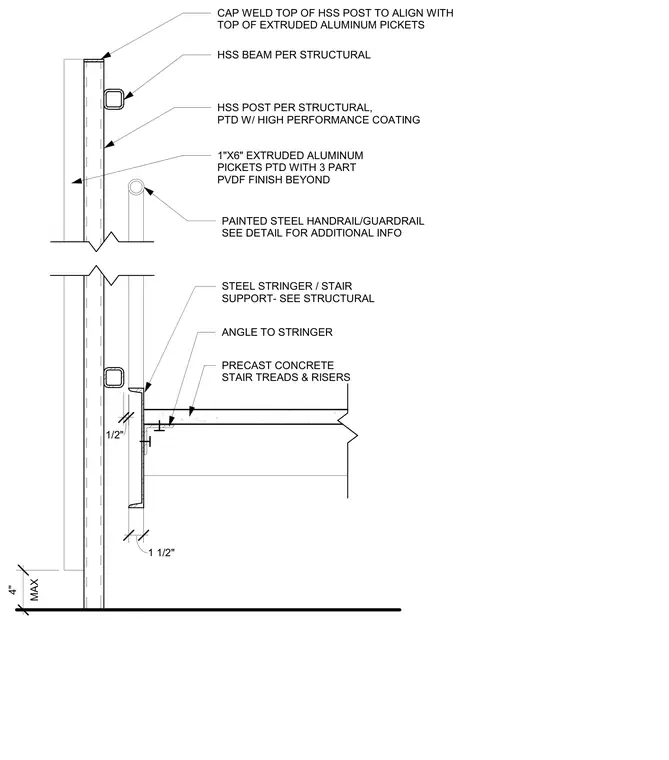

Precast concrete stair treads and risers bear against a steel stringer supported by structural angle connections. A hollow structural section post coated with a high-performance finish extends upward to support hollow structural section beams and extruded aluminum pickets finished with a three-part PVDF coating. A painted steel handrail is mounted alongside the assembly with a cap weld sealing the top of the hollow structural section post to align with the aluminum pickets. A maximum four-inch clearance is maintained at the base condition.
PAINTED STEEL HANDRAIL/GUARDRAIL SEE DETAIL FOR ADDITIONAL INFO PRECAST CONCRETE STAIR TREADS & RISERS HSS BEAM PER STRUCTURAL STEEL STRINGER / STAIR SUPPORT- SEE STRUCTURAL ANGLE TO STRINGER HSS POST PER STRUCTURAL, PTD W/ HIGH PERFORMANCE COATING 1"X6" EXTRUDED ALUMINUM PICKETS PTD WITH 3 PART PVDF FINISH BEYOND CAP WELD TOP OF HSS POST TO ALIGN WITH TOP OF EXTRUDED ALUMINUM PICKETS MAX 4" 1/2" 1 1/2"
