Architectural · A-3W6NR

Ceiling Edge Condition at Linear Wood and Fabric Ceilings

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Ceilings Floors / Slabs Decks Bracing

Connections

Bracing Connection

About this detail

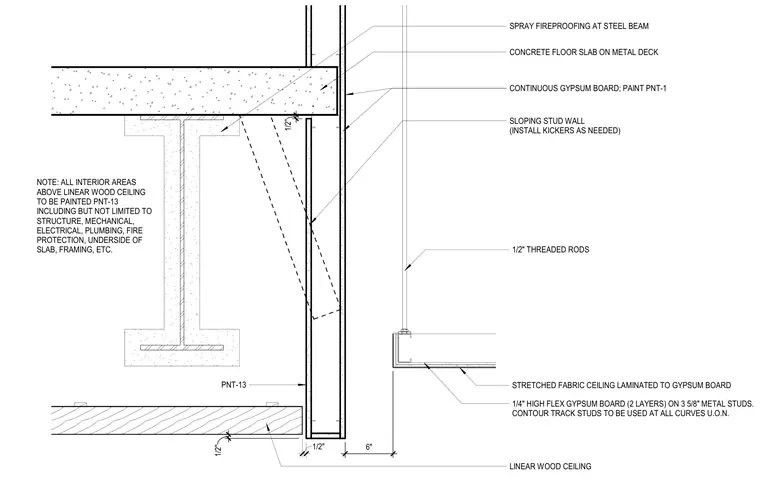

A concrete floor slab on metal deck is supported by a steel beam coated with spray fireproofing. A sloping cold-formed steel stud wall with kickers installed as needed terminates below the slab, faced with continuous gypsum board painted with paint finish PNT-1. A linear wood ceiling runs adjacent to the wall with a half-inch clearance gap. A stretched fabric ceiling laminated to two layers of quarter-inch high flex gypsum board on three-and-five-eighths-inch metal studs is suspended via half-inch threaded rods, spaced six inches from the wall. Contour track studs are used at all curves unless otherwise noted. All interior areas above the linear wood ceiling are painted with paint finish PNT-13, including the structure, mechanical, electrical, plumbing, fire protection, underside of the slab, and framing.
