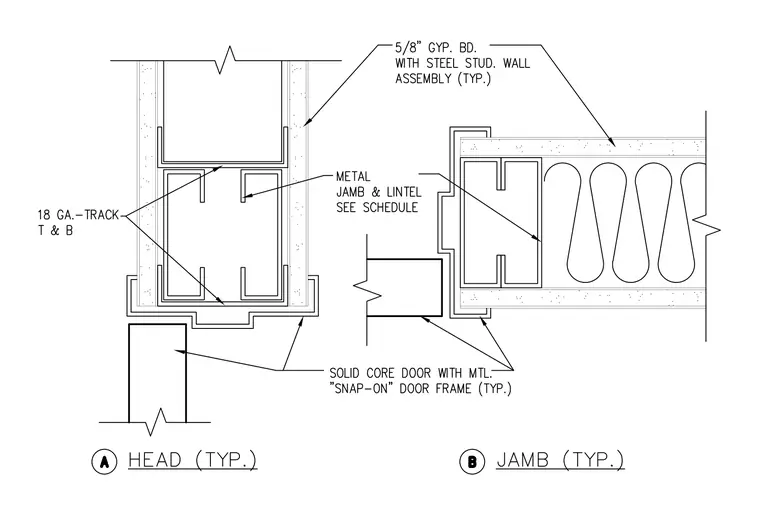

The wall assembly consists of steel studs with five-eighths-inch gypsum board on each side. The head detail uses eighteen-gauge tracks at the top and bottom with metal jamb and lintel members sized per schedule. The jamb detail features similar metal studs and framing wrapped in a metal snap-on door frame typical for solid core doors.
