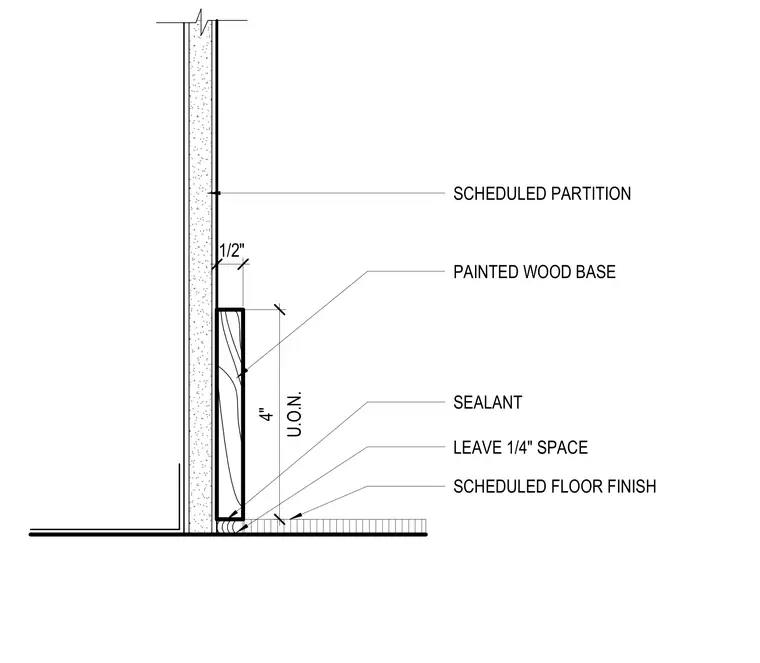

A four-inch painted wood base is fastened to the face of a scheduled partition wall above a scheduled floor finish. A one-quarter-inch space is left at the bottom of the base and sealed unless noted otherwise.
SCHEDULED PARTITION PAINTED WOOD BASE SCHEDULED FLOOR FINISH LEAVE 1/4" SPACE SEALANT U.O.N. 4" 1/2"
