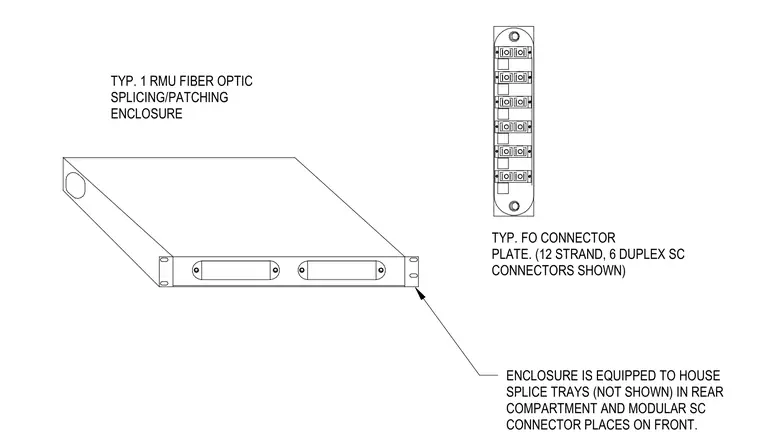

This assembly consists of a typical one rack unit fiber optic splicing and patching enclosure equipped to house splice trays in the rear compartment and modular SC connector plates on the front. A typical fiber optic connector plate is shown featuring twelve strands and six duplex SC connectors.
ENCLOSURE IS EQUIPPED TO HOUSE SPLICE TRAYS (NOT SHOWN) IN REAR COMPARTMENT AND MODULAR SC CONNECTOR PLACES ON FRONT. TYP. 1 RMU FIBER OPTIC SPLICING/PATCHING ENCLOSURE TYP. FO CONNECTOR PLATE. (12 STRAND, 6 DUPLEX SC CONNECTORS SHOWN)
