An end cap guard with a two-inch wing and a height of forty-eight inches protects exposed corners of gypsum wallboard mounted on metal stud framing. The wall thickness varies per plan, and the contractor must verify the exact size prior to ordering and installation.

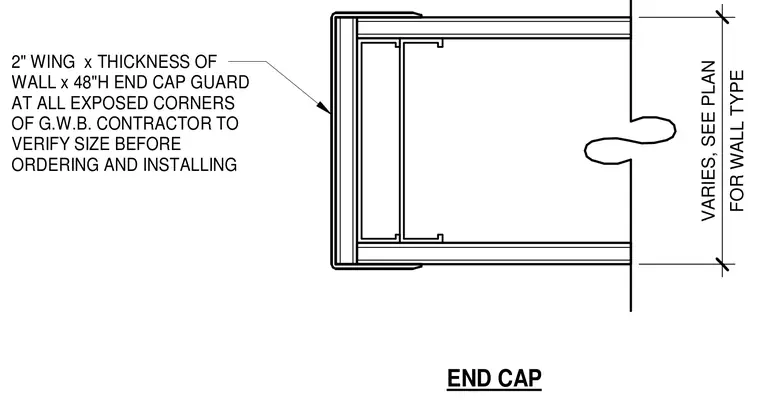

END CAP FOR WALL TYPE VARIES, SEE PLAN 2" WING x THICKNESS OF WALL x 48"H END CAP GUARD AT ALL EXPOSED CORNERS OF G.W.B. CONTRACTOR TO VERIFY SIZE BEFORE ORDERING AND INSTALLING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
