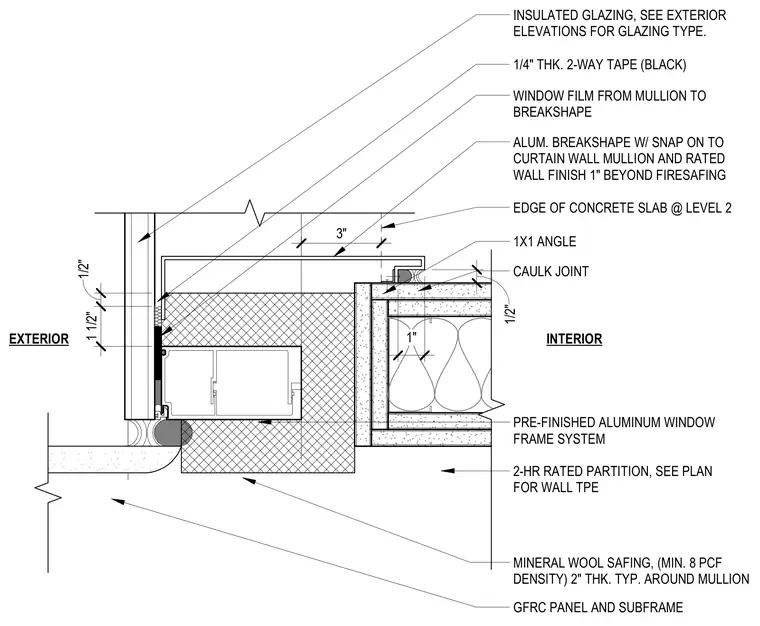

This plan detail shows a two-hour rated partition intersecting a blind mullion of a curtain wall system adjacent to a glass fiber reinforced concrete panel. The assembly features a pre-finished aluminum window frame system with insulated glazing and window film extending from the mullion to an aluminum breakshape with snap-on trim. A one-inch by one-inch angle anchors the assembly near a three-inch caulked joint at the interior face. Two-way black tape at one-quarter inch thickness seals the transition between the aluminum breakshape and the mullion. Two-inch thick mineral wool safing with a minimum density of eight pounds per cubic foot wraps around the mullion, extending one inch beyond the fire safing to meet the rated wall finish.
INTERIOR EXTERIOR EDGE OF CONCRETE SLAB @ LEVEL 2 1/4" THK. 2-WAY TAPE (BLACK) ALUM. BREAKSHAPE W/ SNAP ON TO CURTAIN WALL MULLION AND RATED WALL FINISH 1" BEYOND FIRESAFING MINERAL WOOL SAFING, (MIN. 8 PCF DENSITY) 2" THK. TYP. AROUND MULLION 2-HR RATED PARTITION, SEE PLAN FOR WALL TPE WINDOW FILM FROM MULLION TO BREAKSHAPE PRE-FINISHED ALUMINUM WINDOW FRAME SYSTEM INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. 1 1/2" 1/2" GFRC PANEL AND SUBFRAME 3" CAULK JOINT 1X1 ANGLE 1" 1/2"
