A flush-mount two-button control box is set into a three-and-a-half-inch deep housing constructed from one-quarter-inch wood-veneer-faced plywood with matching veneer edge banding. The control cover is replaced with a custom faceplate that matches the surrounding wood veneer. The assembly attaches directly to an electrical box mounted beneath a one-and-a-half-inch plywood substrate and countertop. Flexible conduit is routed behind the console and away from the leg and keyboard area.

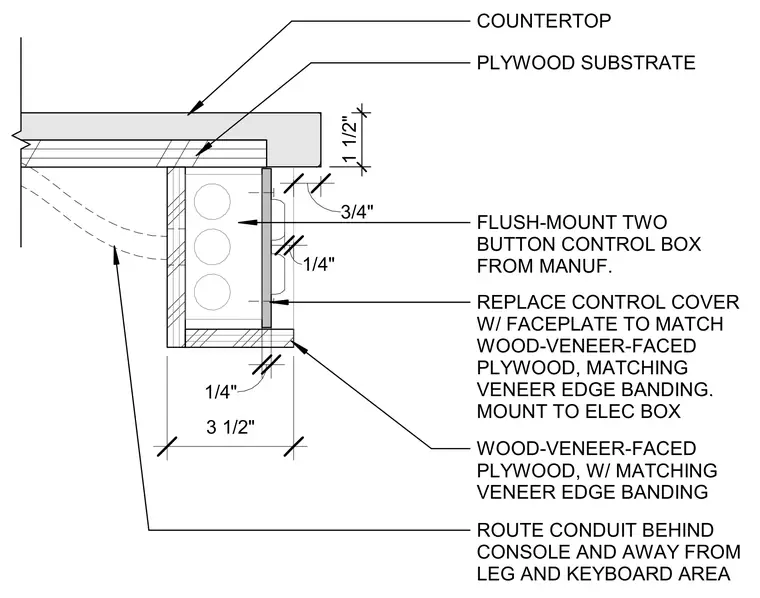

COUNTERTOP 1 1/2" PLYWOOD SUBSTRATE 3/4" 1/4" 3 1/2" REPLACE CONTROL COVER W/ FACEPLATE TO MATCH WOOD-VENEER-FACED PLYWOOD, MATCHING VENEER EDGE BANDING. MOUNT TO ELEC BOX 1/4" WOOD-VENEER-FACED PLYWOOD, W/ MATCHING VENEER EDGE BANDING FLUSH-MOUNT TWO BUTTON CONTROL BOX FROM MANUF. ROUTE CONDUIT BEHIND CONSOLE AND AWAY FROM LEG AND KEYBOARD AREA
