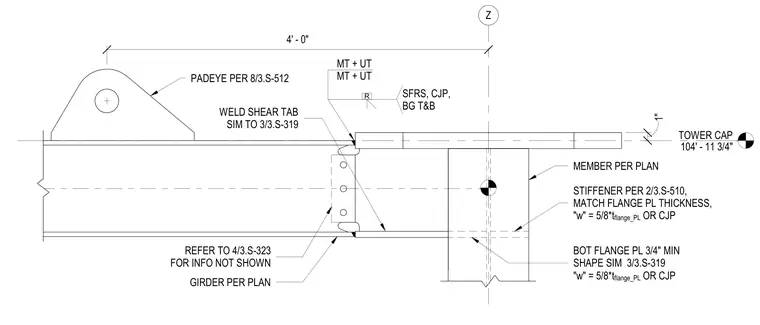

A structural steel tower cap connection features a padeye positioned four feet from center-line Z on the top flange plate. A shear tab connects the girder per plan, with welds specified similar to detail 3/3.S-319 and magnetic particle and ultrasonic testing requirements. Stiffener plates match the flange plate thickness with fillet welds sized at five-eighths of the flange plate thickness or complete joint penetration welds. The bottom flange plate is three-quarter inch minimum thickness, and supplementary information is referenced on sheet 4/3.S-323.
TOWER CAP 104' - 11 3/4" Z R SFRS, CJP, BG T&B MT + UT MT + UT GIRDER PER PLAN REFER TO 4/3.S-323 FOR INFO NOT SHOWN BOT FLANGE PL 3/4" MIN SHAPE SIM 3/3.S-319 "w" = 5/8*t flange_PL OR CJP STIFFENER PER 2/3.S-510, MATCH FLANGE PL THICKNESS, "w" = 5/8*t flange_PL OR CJP 4' - 0" PADEYE PER 8/3.S-512 WELD SHEAR TAB SIM TO 3/3.S-319 MEMBER PER PLAN 1"
