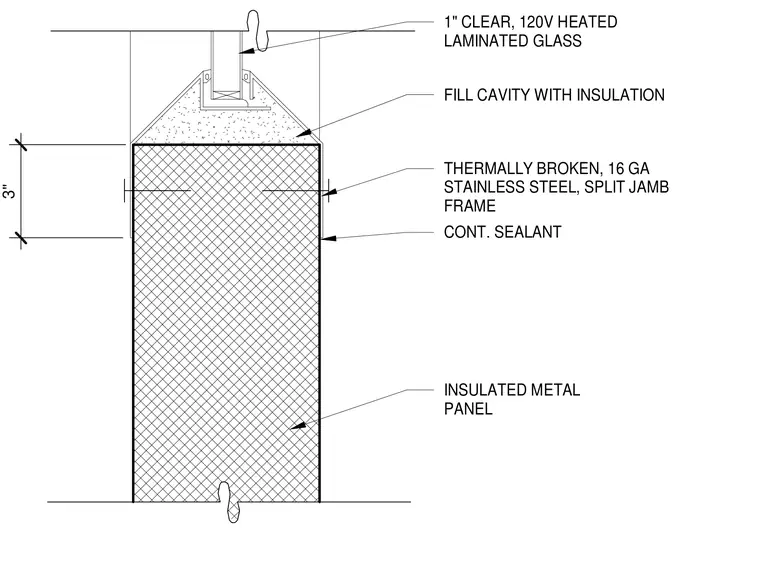

The assembly features a 1-inch clear 120-volt heated laminated glass set into a thermally broken, 16 gauge stainless steel split jamb frame. The frame interfaces with an insulated metal panel wall system, with a 3-inch fill cavity packed with continuous insulation. Continuous sealant is applied at the exterior joint between the metal frame and panel. The cavity directly beneath the window glass is fully packed with insulation.
1" CLEAR, 120V HEATED LAMINATED GLASS THERMALLY BROKEN, 16 GA STAINLESS STEEL, SPLIT JAMB FRAME INSULATED METAL PANEL 3" FILL CAVITY WITH INSULATION CONT. SEALANT
