Architectural · A-3T58E

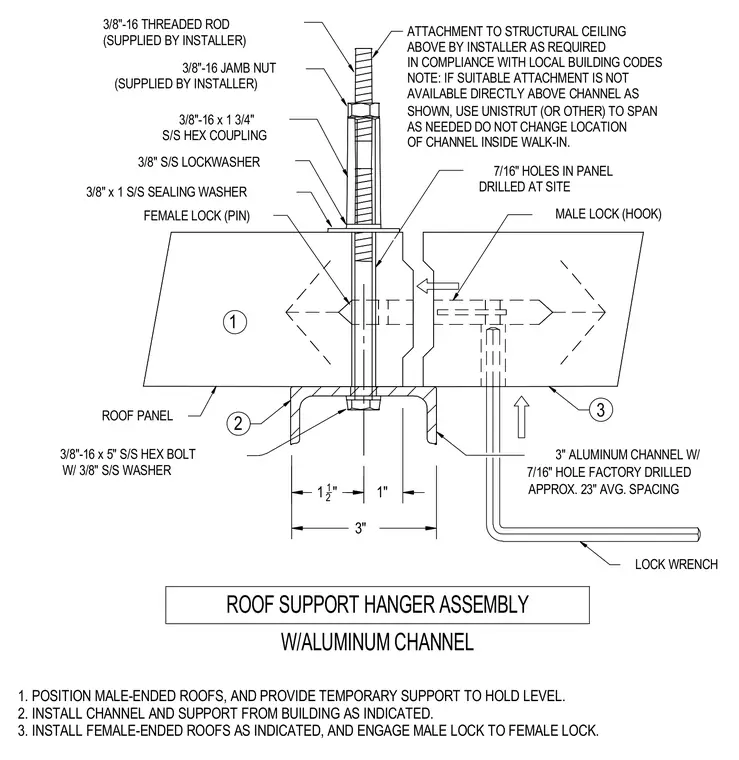

Roof Support Hanger Assembly with Aluminum Channel

Materials

Steel Aluminum

Elements

Roofs Ceilings Reinforcing

Connections

Bolted Connection Rebar Splice / Development

About this detail

Suspension of walk-in roof panels from a structural ceiling using a 3/8"-16 threaded rod supplied by the installer. The threaded rod secures to a 3/8"-16 x 1 3/4" stainless steel hex coupling, locked in place with a 3/8" stainless steel lockwasher, jamb nut, and a 3/8" x 1" stainless steel sealing washer bearing against the top of the roof panel. A 3/8"-16 x 5" stainless steel hex bolt with a 3/8" stainless steel washer fastens through the underside of a 3" aluminum channel, extending through a 7/16" site-drilled hole in the roof panel. The aluminum channel features factory-drilled 7/16" holes at approximately 23" average spacing. Adjoining roof panels connect via male-ended and female-ended interlocking hook and pin joints, secured with a lock wrench as indicated in the installation notes.
