Architectural · A-3T56R

Tall Cabinet Pantry Shelves

Materials

Elements

Partitions Doors Ceilings Floors / Slabs Millwork / Casework

About this detail

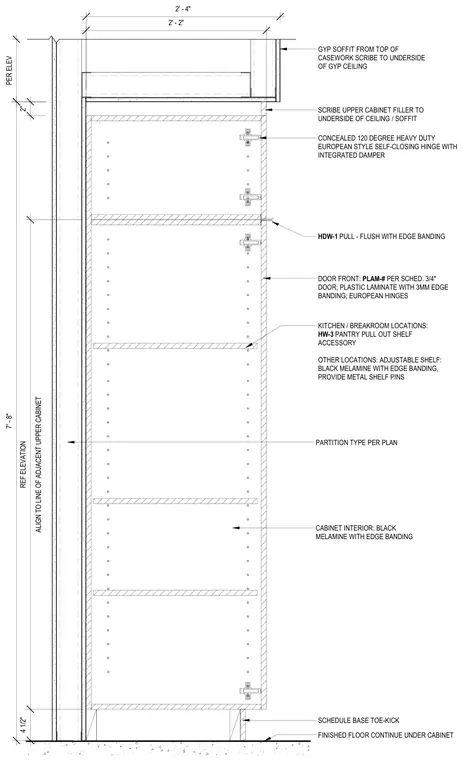

A tall pantry cabinet stands seven feet eight inches high with a two-foot four-inch width, installed against a partition wall per plan. The cabinet features a three-quarter-inch plastic laminate door front with three-millimeter edge banding, hung on concealed one-hundred-twenty-degree heavy-duty European-style self-closing hinges with integrated dampening. Interior compartments utilize black melamine construction with edge banding, equipped with metal shelf pins and adjustable shelves, or optional pantry pull-out shelf accessories in kitchen and breakroom locations. The unit includes a flush-mounted hardware pull, a four-and-a-half-inch base toe-kick aligned with adjacent upper cabinetry, and a scribed upper cabinet filler extending to the underside of the gypsum board ceiling soffit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
